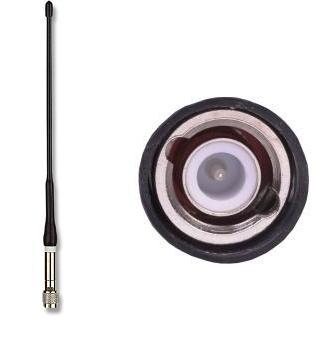

G450TN - Laird (Centurion) 450-470MHz TNC/Male Tuf Duck Antenna
Laird Connectivity antenna fits Standard, Icom, or any other equipment requiring a TNC connector
|
UPC : G450TN
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: G450TN
* Whole number only
|
- Base-loaded 1/2 wave flexible cable antenna
- PVC coated
- Provides 2.5 dB gain over standard 1/4 wave antennas
- Available in various standard connectors
- An original 'Tuf Duck' antenna
Specifications | | Model | G450TN | | Reference | DG450TN | | Band | UHF | | Frequency | 450-470MHz | | Center Frequency | 460 | | Gain | 2.5dB | | Polarization | Vertical | Nominal
Impedance | 50 ohms | Max VSWR
(@ Resonance) | 1.5:1 | RF Power
Handling | 50W | | Connector | TNC/male | | Length | 10" |
Compatible with: Laird Connectivity antenna fits Standard, Icom, or any other equipment requiring a TNC connector Popular Laird Tech (Laird/Centurion) Tuf Duck antennas are stock items while less popular models are custom built by the manufacturer. We will contact you after purchase regarding any product lead times. Tuf Duck antennas are available in a variety of frequencies and connectors. Please contact us if you do not see the Tuf Duck antenna you need. |
