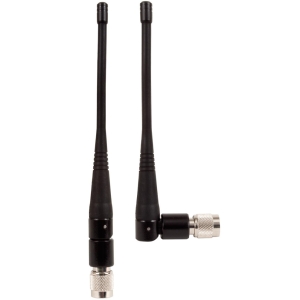

EXR450TN - Laird (Centurion) 450-470 MHz TNC/Male Tuf Duck Antenna
Laird Connectivity antenna fits Icom: Standard: HX241, HX340, HX341, HX440: Relm WHS150, WHS450 and others requiring TNC/Male connector
|
UPC : EXR450TN
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: EXR450TN
* Whole number only
|
- Injection molded flexible right angle antenna with adjustable 0 - 90 degree elbow
- High durability, high efficiency
- Allows for 360 degree movement
Specifications | | Model | EXR450TN | | Reference | DEXR450TN | | Band | UHF | | Frequency | 450 - 470MHz | | Center Frequency | 460 MHz | | Polarization | Vertical | Nominal
Impedance | 50 ohms | Max VSWR
(@ Resonance) | 1.5:1 | RF Power
Handling | 50W | | Connector | TNC/Male | | Length | 6.62 - 6.95" |
Compatible with: Standard: HX241, HX340, HX341, HX440: Relm WHS150, WHS450 and others requiring TNC connector. Popular Laird Tech (Laird/Centurion) Tuf Duck antennas are stock items while less popular models are custom built by the manufacturer. We will contact you after purchase regarding any product lead times. Tuf Duck antennas are available in a variety of frequencies and connectors. Please contact us if you do not see the Tuf Duck antenna you need. |
