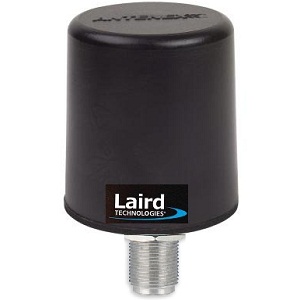

TRABT1500P - Laird Phantom Low Profile 150-168MHz VHF Unity Gain Tunable Antenna (Black/Permanent Mount) with Patented Field Diversity

The original patented Phantom Field Diversity low profile antenna sets industry standard that can not be duplicated.

The permanent mount Original Phantom low profile antenna is designed to be permanently mounted through a relatively thin metal surface. Surface must be metal in order to provide ground plane. The threaded connector on the underside of the antenna is N/Female. In order to connect to a radio or other device you will need a cable with appropriate connectors. We can custom build virtually any cable you require - please contact us.

Note: This antenna features a tunable frequency range of 150-168MHz with a 1MHz bandwidth. What this means is that the antenna can be tuned to any 1MHz band within the range of 150-168MHz.

Features:

• Field tunable (requires VSWR meter on radio) within 150MHz to 168MHz range
• Multiple NMO mounting options are available (sold separately)
• Metal ground plane required
• Patented Field Diversity US Patent Numbers 45,977,931 and 6,292,156
• Patented PC Board radiator
• Phantom patented true field diversity design ensures uninterrupted transmissions in urban canyons and rural drop off areas - counteracts signal fading in reflective or mobile environments
• Solid construction: ABS material is injection molded directly around the solid brass insert and all silver soldered joints
• Specified by public safety, military, utility and transportation providers and installed on Apache, Black Hawk and Chinook helicopters and Humvee and Bradley military vehicles around the world.

Requires:

Requires:

• Cabling: N/Male (antenna side) to radio/device connector

Documents:

• Laird VHF Phantom Tuning Instructions (PDF)
• What is Phantom Field Diversity technology and what does 3dBMEG mean? (PDF)

Specifications
Part Number	TRABT1500P
Frequency Range	150-168Mhz, Field tunable (1MHz Bandwidth)
Impedance	50 Ohms
Antenna Gain	Unity
Radiation	Omni
Polarization	Cross Polarized
Ground Plane	Metal Ground Plane Required (18" minimum radius recommended)
Height	3.3"
Width	3.25"
Color	Black
Mount	Permanent N/Female Mount: Threaded screwbase mounts through metal surface. Terminates in N/Female connector.
