311234 - Indoor Wall-Mount Antenna 50 Ohm 617-2700 MHz
High-efficiency Band 71-compatible inside antenna
Engineered for use with the WilsonPro Pro 710i industrial-grade, cell signal
amplifier, the Indoor Wall-Mount Inside Antenna 50 Ohm 617-2700 MHz is
known for its high-efficiency output.
|
List Price: $89.99
Your Price: $84.99
You Save: $5.00 (6 %)
IN STOCK
UPC : 311234
Manufacturer: weBoost
Manufacturer Part No: 311234
* Whole number only
|
High-efficiency Band 71-compatible inside antenna
Engineered for use with the WilsonPro Pro 710i industrial-grade, cell signal
amplifier, the Indoor Wall-Mount Inside Antenna 50 Ohm 617-2700 MHz is
known for its high-efficiency output, compact design, and ease of installation.
It works on low-frequency 5G (Band 71), 617-960 and 1710-2700 MHz, and
all LTE/CDMA/GSM/UMTS/AWS worldwide cellular bands for voice and data.
Installed flatly against the interior wall of an office, warehouse, or commercial
building, the Indoor Wall-Mount Antenna 50 Ohm 617-2700 MHz features a
neutral color that blends into the background of practically any environment.

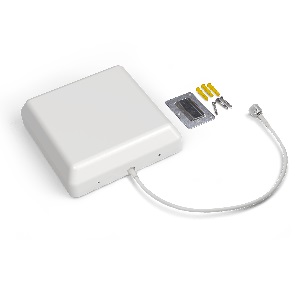

The Indoor Wall-Mount Antenna 50 Ohm includes an N-Female connector,
installation hardware kit, and a 2-year manufacturer’s warranty from Wilson.
|
Specifications
|
| Part Number |
311234 |
| Frequency Range |
700-960MHz & 1710-2170MHz |
| Impedance |
50 Ohms |
| Antenna Gain |
5.2 dBi (700-800MHz)
4.4 dBi (824-894MHz)
4.2 dBi (880-960MHz)
10.0 dBi (1710-1880MHz)
10.6 dBi (1850-1990MHz)
8.2 dBi (2110-2170MHz)
|
3dB Beam Width Horizontal Plane |
70 / 60 degrees |
3dB Beam Width Vertical Plane |
50 / 45 degrees |
| Polarization |
Vertical |
| VSWR |
< 1.5 |
| Ground Plane |
Built-In |
| Connector |
N Female |
| Dimensions |
8.27" x 7.09" x 1.73" |
| Weight |
1.32lbs |
|
311234 - Indoor Wall-Mount Antenna 50 Ohm 617-2700 MHz
|
|
