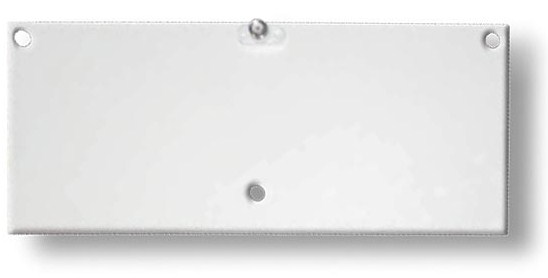

IFULTRA-SF00 - Laird Connectivity Multi-Band Cell/PCS/GSM/DCS/UMTS/ISM UltraSphere Omni Directional In-Building Antenna (CAF94895)

Small, easy to hide omni directional in building antenna.
Discontinued: No longer available

Your Price: DISCONTINUED

Out of stock - Please Call

UPC : IFULTRA-SF00 / CAF94895

Manufacturer: TE Connectivity (Laird)

Manufacturer Part No: IFULTRA-SF00 / CAF94895

Features and Benefits

Surprisingly small size allows it to be hidden almost anywhere, providing an invisible solution for many applications.
The omnidirectional pattern is suited to a variety of uses, including handheld devices, in-building systems or other applications where mobility is a factor.
The field pattern is toroidal, providing omnidirectional coverage in any plane around the long axis of the antenna, and two lobes in any plane parallel to the long axis.

Specifications
Model	IFMULTRA-SF00
Centurion Model Number	CAF94895
Frequency	AMPS: 806-896MHz GSM: 880-960MHz DCS: 1710-1880MHz PCS: 1850-1990MHz UMTS: 1920-2170MHz ISM (WiFi): 2400-2500MHz
Gain	3dBi
Element Type	Microstrip
Polarization	Linear
Impedance	50ohms
Max Input Power	50W
VSWR	2:1
Size	7"L x 3.2"W x 0.1"T
Coating	Acrylic
Operating/Storage Temp	-40 to 70 degrees C
Connector	SMA/Female

Mounting: Includes nylon screws for mounting to ceiling tile or finished ceiling.
