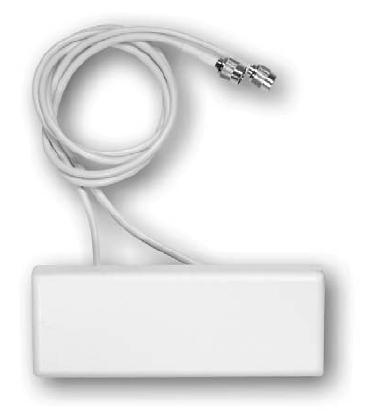

IDD5250-RT36 - Laird Connectivity 4.9-6 GHz Terrace Diversity In Building Antennas (CAF94792)

IDD5250-RT36 - Laird Connectivity 4.9-6 GHz Terrace Diversity In Building Antennas (CAF94792)
Laird Tech (formerly Centurion) terrace diversity antenna provides optimal corridor & hallway coverage.
Your Price: $199.45
IN STOCK
UPC : IDD5250-RT36
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: IDD5250-RT36

Laird Connectivity (formerly Centurion) Terrace Diversity Antenna:

  • Bi-directional pattern provides optimal corridor & hallway coverage
  • Diversity antennas offer the unique advantage of multiple-port spatial diversity within a single, compact radome. This configuration allows for easier integration and mounting, at a lower overall cost.

Specifications

ModelIDD5250-RT36
Centurion Model NumberCAF94792
Frequency4.9-6 GHz
Gain5 dBi
Element TypeMicrostrip
PolarizationLinear
Impedance50ohms
Max Input Power50W
VSWR2.0:1
Size4.9"L x 1.7"W x 1.1"H
HousingABS
Operating/Storage Temp-40 to 70 degrees C
ConnectorR.P. TNC x 2
Cable36" White RG-142
(Plenum)

Mounting: Dual-Lock L-bracket included

IDD5250-RT36 - Laird Connectivity 4.9-6 GHz Terrace Diversity In Building Antennas (CAF94792)
