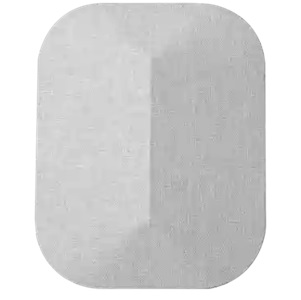

314441- Home Inside Antenna (50 Ohm)
The Home Inside Antenna (50 Ohm) is a proprietary indoor antenna made for Wilson Pro cellular signal boosters; noted for its stylish fabric cover, high performance, and intuitive wall-mount bracket.
With the included 3M Command Strips, the Home Inside
|
List Price: $99.99
Your Price: $89.99
You Save: $10.00 (10 %)
IN STOCK
UPC : 314441
Manufacturer: weBoost
Manufacturer Part No: 314441
* Whole number only
|
The Home Inside Antenna (50 Ohm) is a proprietary indoor antenna made for Wilson Pro cellular signal boosters; noted for its stylish fabric cover, high performance, and intuitive wall-mount bracket.
With the included 3M Command Strips, the Home Inside Directional Antenna securely mounts to interior walls in a vertical or horizontal configuration. The antenna’s neutral design aesthetic easily complements contemporary décor and features a built-in kickstand for shelf placement.
|
Specifications
|
| Part Number |
314441 |
| Frequency Range |
689-960MHz & 1710-2700MHz |
| Impedance |
50 Ohms |
| Antenna Gain |
5.2 dBi (700-800MHz)
4.4 dBi (824-894MHz)
4.2 dBi (880-960MHz)
10.0 dBi (1710-1880MHz)
10.6 dBi (1850-1990MHz)
8.2 dBi (2110-2170MHz)
|
3dB Beam Width
Horizontal Plane |
70 / 60 degrees |
3dB Beam Width
Vertical Plane |
50 / 45 degrees |
| Polarization |
Vertical |
| VSWR |
< 1.5 |
| Ground Plane |
Built-In |
| Connector |
F Female |
| Dimensions |
8.27" x 7.09" x 1.73" |
| Weight |
1.32lbs |
|
