GPST5I824/18503 - Laird (Laird Connectivity) 5 Volt Internal Mercury Tri-Band (AMPS, PCS & GPS) Antenna
Internal Mercury Tri-Band 824-896 MHz, 1850-1990 MHz, 1575.42 MHz (GPS) Antenna
|
Out of stock - Please Call
UPC : GPST5I824/18503
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: GPST5I824/18503
* Whole number only
|

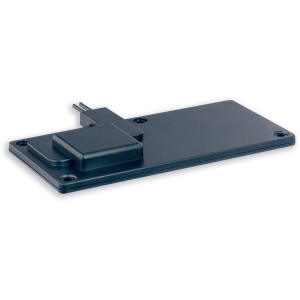

The Laird Internal Mercury GPS Tri-Band Antenna is a high gain solution that maximizes coverage area. The antenna's small size and low profile design allows for use in stealth (covert) in-vehicle automative applications such as fleet management, asset tracking and anti-theft systems. The unit's sleek durable housing provides a longer lifespan and easier transfer between vehicles.. NOTE: Can be custom made with any cable length and connectors you require - contact us for availability. Specifications | | Model | GPST51824/18503 | | Radio Frequency | 824-896MHz: Amps
1850-1990MHz: PCS
15.75.42MHZ: GPS | | Impedance | 50 Ohms | | Gain | 3dBi Nominal: Amps
3dBi Nominal: PCS
30dBi Nominal: GPS | | Voltage | 4.5-5.5 VDC (5) | | Dimensions (L x W x H) | 5.12" x2.59" x .51" | | Connector Type | SMA/Male | | Coax Type | 14' RG-174 | | Mount | None Supplied
(adhesive tape or
velcro recommended) |
</> |
