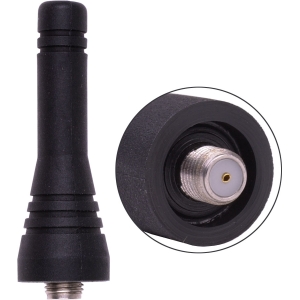

EXS806SF - Laird (Centurion) 806-866MHz SMA/Female Connector Tuf Duck Antenna
Laird Connectivity antennas fits Motorola Astro, Saber, HT1000, JT1000, MT2000, MTX800, MTX8000, MTX900, MTX9000, Visar, EF Johnson Avenger SI
|
UPC : EXS806SF
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: EXS806SF
* Whole number only
|
- Injection molded 1/4 wave helical 'slim mini' antenna
- High durability, high efficiency
- Textured finish with strain-relief base
- Available in various standard connectors
- An original 'Tuf Duck' antenna
Specifications | | Model | EXS806SF | | Reference | DEXS806SF | | Frequency | 806-866MHz | | Center Frequency | 836MHz | | Gain | Unity | | Polarization | Vertical | Nominal
Impedance | 50 ohms | Max VSWR
(@ Resonance) | 1.5:1 | RF Power
Handling | 50W | | Connector | SMA/Female | | Length | 2.25" |
Compatible with: Motorola Astro, Saber, HT1000, JT1000, MT2000, MTX800, MTX8000, MTX900, MTX9000, Visar, EF Johnson Avenger SI Popular Laird Tech (Laird/Centurion) Tuf Duck antennas are stock items while less popular models are custom built by the manufacturer. We will contact you after purchase regarding any product lead times. Tuf Duck antennas are available in a variety of frequencies and connectors. Please contact us if you do not see the Tuf Duck antenna you need. |
|
|
Your Price: No longer available
Laird Connectivity antenna fits Motorola MX360, STX, MTX800, HT1000, MT2000, MTX8000, MTX9000, Visar or any radio requiring a SMA female connector
|
| | | |
