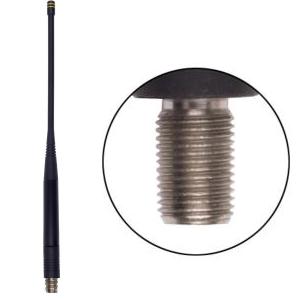

EXL30HT - Laird Connectivity (Laird/Centurion) 30-35MHz HT Connector Tuf Duck Antenna
Laird Connectivity antenna fits Motorola HT200, HT210, HT220, MH10, MH70, MT, MT500, MX600: Uniden APH, APL, APU.
|
UPC : EXL30HT
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: EXL30HT
Select Options Below
|
- Injection molded 1/4 wave injection molded flexible antenna
- High durability, high efficiency
- Textured finish with strain-relief base
- Available in various standard connectors
- An original 'Tuf Duck' antenna
Note: This antenna features a tunable frequency range of 30-35MHz with a 1MHz bandwidth. What this means is that the antenna can be tuned to any 1MHz band within the range of 30-35MHz.
Documents:
|
Specifications
|
| Model |
EXL30HT |
| Reference |
DEXL30HT |
| Frequency |
30-35MHz |
| Center Frequency |
Tunable |
| Gain |
Unity |
| Polarization |
Vertical |
Nominal
Impedance |
50 ohms |
Max VSWR
(@ Resonance) |
1.5:1 |
RF Power
Handling |
5W |
| Connector |
HT |
| Length |
11" |
This antenna is special ordered to your frequency band and tuning requirements. Because of this, low band Tuf Duck antenna orders, while fully warranted, are not cancellable or returnable.
Compatible with: Motorola HT200, HT210, HT220, MH10, MH70, MT, MT500, MX600: Uniden APH, APL, APU.
Popular Laird Tech (Laird/Centurion) Tuf Duck antennas are stock items while less popular models are custom built by the manufacturer. We will contact you after purchase regarding any product lead times.
Tuf Duck antennas are available in a variety of frequencies and connectors. Please contact us if you do not see the Tuf Duck antenna you need. |
