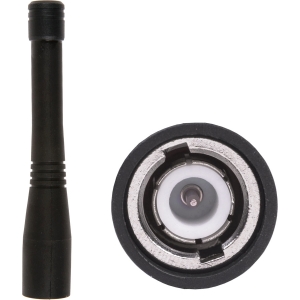

EXD450BNX - Laird (Centurion) 450-470MHz BNC/Male (Covered) Tuf Duck Antenna
Laird Connectivity antenna fits GE MPI, PLS, PCS: Kenwood TK100, TK200, TK210, TK220, TK300, TK310, TK320: Motorola HT440, HT90: Maxon HR, CP500, CP520, 1015: EF Johnson 577, 578: Standard 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420: Unid
|
UPC : EXD450BNX
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: EXD450BNX
* Whole number only
|
- Injection molded 1/4 wave helical antenna
- High durability, high efficiency
- Textured finish with strain-relief base
- Available in various standard connectors
- An original 'Tuf Duck' antenna
Specifications | | Model | EXD450BNX | | Reference | DEXD450BNX | | Band | UHF | | Frequency | 450-470MHz | | Center Frequency | 460 | | Polarization | Vertical | Nominal
Impedance | 50 ohms | Max VSWR
(@ Resonance) | 1.5:1 | RF Power
Handling | 50W | | Connector | BNC/male (Covered) | | Length | 3" |
Compatible with: GE MPI, PLS, PCS: Kenwood TK100, TK200, TK210, TK220, TK300, TK310, TK320: Motorola HT440, HT90: Maxon HR, CP500, CP520, 1015: EF Johnson 577, 578: Standard 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420: Uniden HH979: Wilson HH152, HH154, HH156, HH462 , HH464 and others requiring BNC connector. Popular Laird Tech (Laird/Centurion) Tuf Duck antennas are stock items while less popular models are custom built by the manufacturer. We will contact you after purchase regarding any product lead times. Tuf Duck antennas are available in a variety of frequencies and connectors. Please contact us if you do not see the Tuf Duck antenna you need. |
Your Price: No longer available
Laird Connectivity antenna fits GE MPI, PLS, PCS: Kenwood TK100, TK200, TK210, TK220, TK300, TK310, TK320: Motorola HT440, HT90: Maxon HR, CP500, CP520, 1015: EF Johnson 577, 578: Standard 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420: Unid
|
|
Your Price: No longer available
Laird Connectivity antenna fits Motorola GP300, GP350, HT10, HT50, HT600, MT100, MX, MX300, P10, P50, P100, P200, P210, SP10, SP50, Expo, Radius Saber (with washer CAP74160): Kenwood TK230, TK240, TK250, TK260, TK270, TK330, TK340, TK350, TK360, TK370: Ma
|
Your Price: No longer available
Laird Connectivity antenna fits Motorola MX360, STX, MTX800, HT1000, MT2000, MTX8000, MTX9000, Visar or any radio requiring a SMA female connector
|
Your Price: No longer available
Laird Connectivity antenna fits G.E./Vertex or any other equipment requiring an SMA/Male connector
|
|
Your Price: No longer available
Laird Connectivity antenna fits Standard, Icom, or any other equipment requiring a TNC connector
| | | | | |
