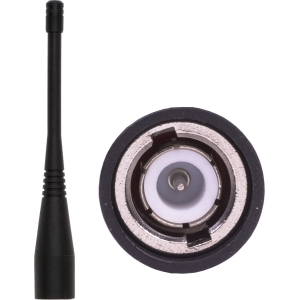

EXC806BNX - Laird (Centurion) 806-866MHz BNC/Male (Covered) Tuf Duck Antenna
Laird Connectivity antenna fits GE MPI, PLS, PCS: Kenwood TK100, TK200, TK210, TK220, TK300, TK310, TK320: Motorola HT440, HT90: Maxon HR, CP500, CP520, 1015: EF Johnson 577, 578: Standard 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420: Unid
|
Your Price: No longer available
UPC : EXC806BNX
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: EXC806BNX
|
LAIRD 800-866 MHz 4" portable antenna. Injection molded. Covered BNC connector.
800-866 Port Ant BNC, 4"
- High durability and efficiency
- Textured finish with strain-relief base
- Available in various standard connectors
- An original 'Tuf Duck' antenna
|
Specifications
|
| Model |
EXC806BNX |
| Reference |
DEXC806BNX |
| Frequency |
806-866MHz |
| Center Frequency |
836MHz |
| Gain |
Unity |
| Polarization |
Vertical |
Nominal
Impedance |
50 ohms |
Max VSWR
(@ Resonance) |
1.5:1 |
RF Power
Handling |
50W |
| Connector |
BNC/male (Covered) |
| Length |
4" |
Compatible with: GE MPI, PLS, PCS: Kenwood TK100, TK200, TK210, TK220, TK300, TK310, TK320: Motorola HT440, HT90: Maxon HR, CP500, CP520, 1015: EF Johnson 577, 578: Standard 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420: Uniden HH979: Wilson HH152, HH154, HH156, HH462 , HH464 and others requiring BNC connector.
Popular Laird Tech (Laird/Centurion) Tuf Duck antennas are stock items while less popular models are custom built by the manufacturer. We will contact you after purchase regarding any product lead times.
Tuf Duck antennas are available in a variety of frequencies and connectors. Please contact us if you do not see the Tuf Duck antenna you need. |
|
|
|
|
