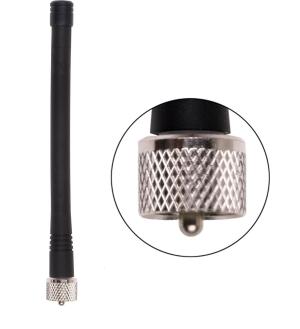

EXB148PL - Laird (Centurion) 148-155MHz UHF/Male Tuf Duck Antenna
Laird Connectivity antenna fits any radio which accepts a UHF male connector.
|
Your Price: No longer available
Out of stock - Please Call
UPC : EXB148PL
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: EXB148PL
|
- Injection molded 1/4 wave helical
- High durability and efficiency
- Textured finish with strain-relief base
- Available in various standard connectors
- An original 'Tuf Duck' antenna
| Specifications | | Model | EXB148PL | | Reference | DEXB148PL | | Band | VHF | | Frequency | 148-155MHz | | Gain | Unity | | Polarization | Vertical | Nominal
Impedance | 50 ohms | Max VSWR
(@ Resonance) | 1.5:1 | RF Power
Handling | 50W | | Connector | UHF/male | | Length | 6" | Compatible with: any radio which accepts a UHF male connector. Popular Laird Tech (Laird/Centurion) Tuf Duck antennas are stock items while less popular models are custom built by the manufacturer. We will contact you after purchase regarding any product lead times. Tuf Duck antennas are available in a variety of frequencies and connectors. Please contact us if you do not see the Tuf Duck antenna you need. |
