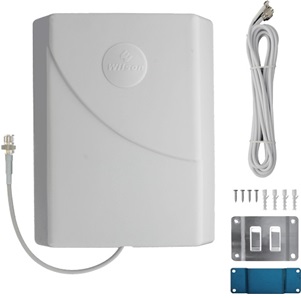

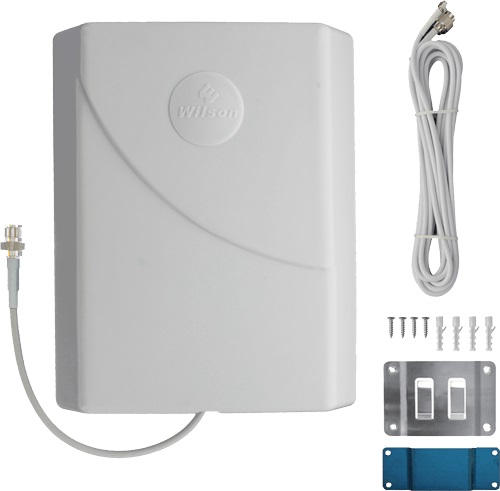

304447 - Home & RV Indoor Antenna Upgrade Kit (SMA-Male)
8 x 7 x 2 in. 4G RV cellular antenna, white panel, 50 Ohm, Directional, Wall mount, 20 ft. RG58 with N-Male to SMA-Male connector. Upgrade from desktop antenna. Commonly used with the Home 4G and Connect RV 65
|
List Price: $119.99
Your Price: $99.99
You Save: $20.00 (17 %)
IN STOCK
UPC : 304447
Manufacturer: weBoost
Manufacturer Part No: 304447
* Whole number only
|
8 x 7 x 2 in. 4G RV cellular antenna, white panel, 50 Ohm, Directional, Wall mount, 20 ft. RG58 with N-Male to SMA-Male connector. Upgrade from desktop antenna. Commonly used with the Home 4G and Connect RV 65
|
Specifications
|
| Part Number |
304447 |
| Frequency Range |
700-960MHz & 1710-2170MHz |
| Impedance |
50 Ohms |
| Antenna Gain |
5.2 dBi (700-800MHz)
4.4 dBi (824-894MHz)
4.2 dBi (880-960MHz)
10.0 dBi (1710-1880MHz)
10.6 dBi (1850-1990MHz)
8.2 dBi (2110-2170MHz)
|
3dB Beam Width
Horizontal Plane |
70 / 60 degrees |
3dB Beam Width
Vertical Plane |
50 / 45 degrees |
| Polarization |
Vertical |
| VSWR |
< 1.5 |
| Ground Plane |
Built-In |
| Connector |
N Male - SMA Male |
| Dimensions |
8.27" x 7.09" x 1.73" |
| Weight |
1.32lbs |
|
