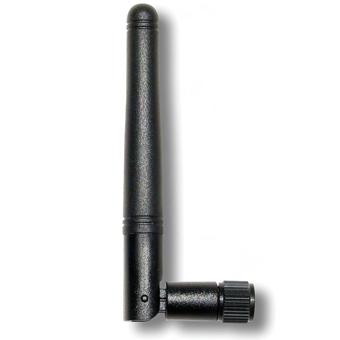

MAF94051 / WTSB2450-RPSMA - Laird (Centurion) 2.4-25GHz, 4.9-6GHz Tri-Band Small External Wireless Antenna (RP-SMA)
WTS WLAN Tri-Band Small External Wireless Antenna,
|
UPC : WTSB2450-RPSMA / MAF94051
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: WTSB2450-RPSMA / MAF94051
* Whole number only
|
- Covers 2.4 to 2.5 GHz for 802.11b, and 4.9 to 6 GHz for 802.11a and all US, European, and Japanese WLAN applications
- Omni-directional patterns at all frequencies with increased gain in upper bands for optimal coverage
Specifications | | Model | WTS2450-RPSMA | | Reference | MAF94051 | | Gain | 2.5 dBi (2.45GHz)
3.6 dBi (4.9GHz)
3.0 dBi (5.25 GHz)
3.4 dBi (5.875 GHz) | | Diameter | 9.3 inches | | Length | 75.4 mm (90 degree bent)
95.9 mm (straight) | | Color | Black | | Connector Type | RP-SMA |
|
MAF94051 / WTSB2450-RPSMA - Laird (Centurion) 2.4-25GHz, 4.9-6GHz Tri-Band Small External Wireless Antenna (RP-SMA)
|
|
