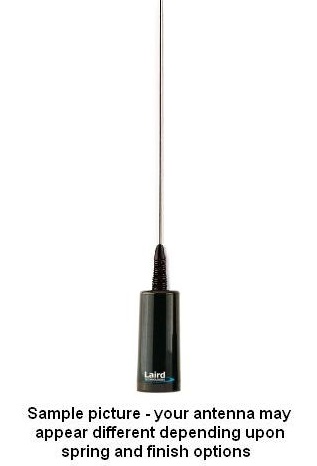

WPC39S0B-001 - Laird Wideband, Lowband 39 to 46 MHz frequency 2 dBi gain NMO mount antenna

The WPC39S0B-001 is a public safety antenna designed to work at sustained high vehicle speeds and with a heavy-duty cycle (10 minutes @ 100W). It operates in the 39 to 46 MHz frequency band with 2 dBi gain, omnidirectional pattern, and vertical polarization. The antenna possesses excellent return loss with no tuning required, supports wide separation of XMT and RCV frequencies, and supports with more channel pairs.



FEATURES

Operates from 39 MHz to 46 MHz, with no tuning required

Excellent return loss

Designed to operate at high vehicle speeds with a heavy duty cycle (10 minutes @ 100W)

Specially designed to dissipate heat during heavy duty cycles



BENEFITS



Wide bandwidth allows for wide separation of transmit and receive frequencies

Interoperability with other lowband users



Specifications
Model	WPC39S0B-001
Frequency	39-46 MHz
Center Frequency	43.5 MHz
Color	Black
Shock Spring	Yes
Gain	2 dBi
Overall Length	64"
Whip Style	Base Loaded 1/4 Wave
Mount	Requires NMO Mount
