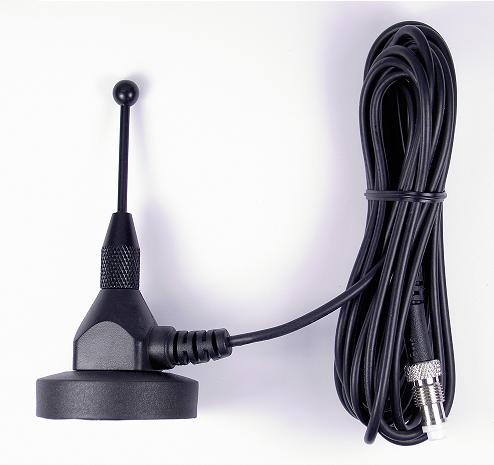

TS210380 - Dual-Band Mini Magnetic Mount Cell Phone Antenna

AA-012 - Dual-Band Mini Magnetic Mount Cell Phone Antenna
Big performance in a small package! Works great on passenger cars and trucks. Performs as well as many taller magnetic mount antennas. Magnetic mount antenna for Cellular/PCS and iDEN frequencies. (TS210380)
Your Price: $36.70
IN STOCK
UPC : TS210380
Manufacturer: Top Signal
Manufacturer Part No: TS210380

Select Options Below

* denotes required field

Select the Antenna Adapter Cable for your modem (discount price when purchased with antenna)*
Select the Antenna Adapter Cable for your cell phone (discount price when purchased with antenna)

This high performing mini magnetic antenna is recommended for use on cars, trucks and boats. It must be mounted on a metal surface (minimum 8" diameter) to function properly and is not recommended for home use.

A phone adapter cable is required to connect to your phone.

Features:

  • Dual-Band & Tri-Mode: 700-800 MHz / 824-894 MHz / 880-960 MHz /1850-1990 MHz Analog and Digital
  • Compatible with all Cellular, PCS, LTE and iDEN providers
  • Easy to install
  • Removable - easily transfers from one vehicle to another
  • Metal ground plane required (minimum 8" diameter)
  • 10 to 15 times more signal than a cell phone used inside vehicle without an external antenna

Requires:

  • Phone Adapter Cable: All of our antennas require a phone adapter cable in order to connect to your cell phone

Optional:

Provides maximum range and power. Connects between an FME/Female cell phone antenna and cell phone adapter cable.

Specifications
Part Number TS210380
Frequency Range 697-894MHz & 1850-1990MHz
Impedance 50 Ohms
Antenna Gain Unity Gain
VSWR < 1.8
System Gain 10 - 15dB
Radiation Omni
Polarization Vertical
Ground Plane Metal Ground Plane Required
Connector FME Female
Coax Cable 9.8' RG-174
Height 3.4"
Mount Magnetic

Also known as: Cellular Antenna, Cellular Antennas, Cell Antenna, Cell Antennas, Cell Phone Antenna, Cell Phone Antennas, Wilson Antenna
