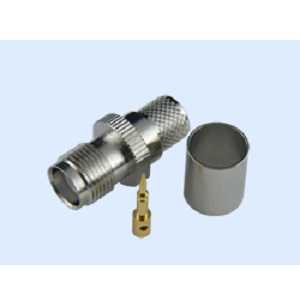

TC-400-TFEM-RP - TNC/Female Reverse Polarity crimp for LMR-400 RPTNC Female
Crimp on TNC/Female REVERSE POLARITY connector for LMR-400 Coax
|
IN STOCK
UPC : TC-400-TFEM-RP
Manufacturer: wpsantennas.com
Manufacturer Part No: TC-400-TFEM-RP
* Whole number only
|
Item Specifications:
| wpsantennas.com | | | Technical Characteristics | | Electrical | | Impedance | 50ohm | | Frequency | 0 - 4GHz | | Dielectric Withstanding Voltage | 500 VRMS max. | | VSWR | | Straight VSWR | 1.3 max. | | Right Angle VSWR | 1.5 max. | | Contact Resistance | | Center Contact | <= 3 milliohm | | Outer Contact | <= 2 milliohm | | Insulator Resistance | >= 5000 megaohm | | Body Details | | Mating End | | Type | TNC | | Gender | Female | | Reverse Polarity | Yes | | Cable End | | Cable Termination | Crimp | | TCC Cable Group | T | | Cables within TCC cable group T: | aircomplus, Belden 9913, CNT 400, ECOFLEX10, LMR400, WBC-400 | | Insulation | Teflon | | Body Plating | Nickel | | Pin Details | | Pin Plating | Gold |
|
