SC-228W - SureCall Ultra Thin Antenna

SureCall Ultra Thin Antenna is a slim, low-profile indoor omni-directional antenna designed to blend seamlessly into any environment. The wide band ceiling-mount antenna transmits and receives signal in a 360 degree pattern, covering Cellular, PCS, AWS a

Your Price: $103.94

IN STOCK

UPC : SC-228W

Manufacturer: SureCall

Manufacturer Part No: 8.59E+11

Quantity:

Email this page to a friend

Features:

Ultra Thin Omni-directional indoor dome antenna designed to be ceiling-mounted
3.5 dBi / 7.5 dBi Gain
Wide band: 2G, 3G & 4G LTE (698 - 2700 MHz)
Two mounting options for all ceiling types
N-Female connector (50 Ohm)

Overview:

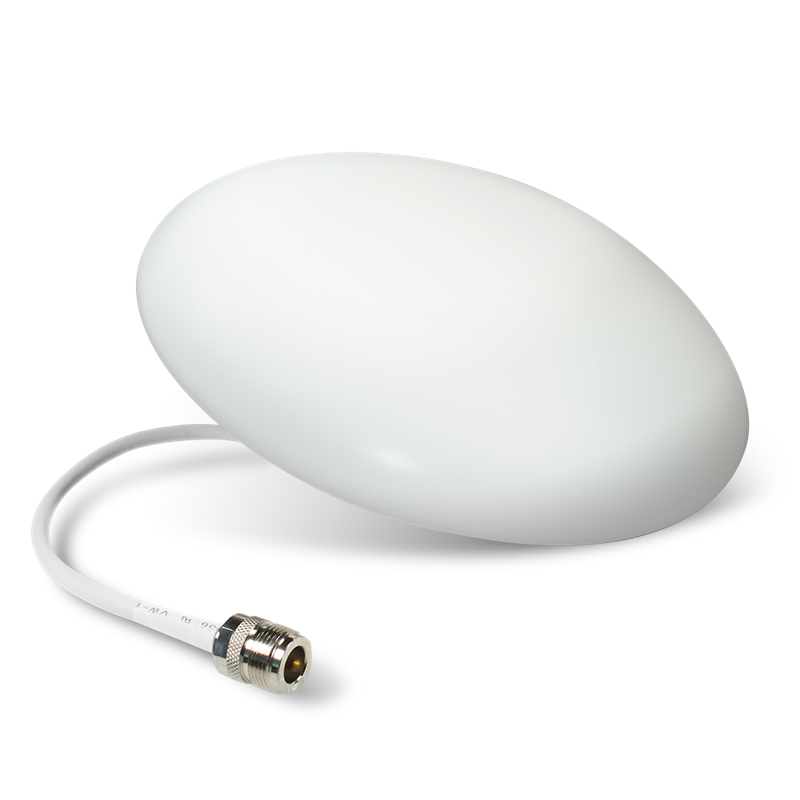

Designed to blend seamlessly into any environment, the SureCall Ultra Thin Antenna™ is a low-profile ceiling-mount antenna for in-building cell phone signal boosters.

The wide band indoor antenna transmits and receives signal in a 360 degree pattern and is designed to cover 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies..

LMR-400 Extensions Cables:

A phone adapter cable is required to connect to your phone.

Documents:

Field Test Modes

Specifications
Part Number	SC-228W
Frequency Range	698-960MHz 1710-2700Mhz
Antenna Gain	3.5 dB (698-960MHz) 7.5 dB (1710-2700Mhz)
VSWR	<1.7
Power Rating (W)	10
Impedance	50 Ohms
Polarization	Vertical
H. Beamwidth	92 / 80 degrees
Vert. Beamwidth	72 / 50 degrees
Radiation	Omni-Directional
Max Power	100W
Connector	N/Female
Dimension	1.45" x 11.8"
Color	White
Operating Temperature	-22 to +176 degrees F
Warranty	3 year
