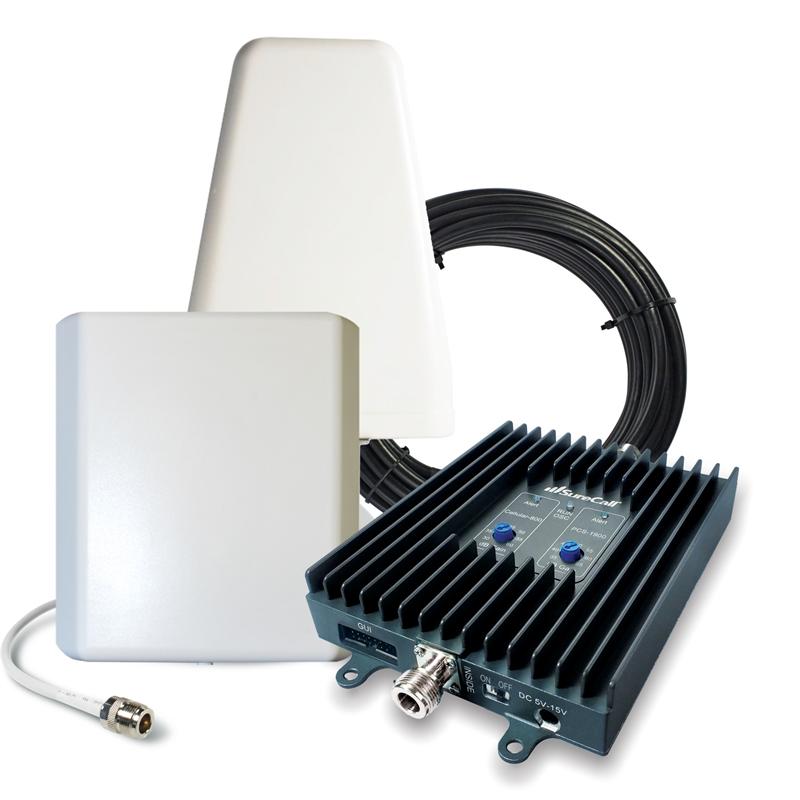

FlexPro Yagi/Panel Kit - 72dB dual-band manually adjustable booster kit for areas up to 6,000 sq. ft. SC-DualH/O-72-YP-KIT

The FlexPro Series cellular booster with adjustable dials allows you to optimize cellular coverage in your home or in your office where reception is weak due to topography, building materials or structural design. Part of Cellphone-Mate’s Enhance line of personal consumer and SOHO boosters, Its compartmentalized design ensures enhanced call clarity for multiple users.

Important Information Regarding Coverage:

• Coverage is dependent upon the strength of the signal received from the tower at the outside antenna. At the location that the outside antenna is mounted a signal strength of at least 3 bars is required. Use of a high-gain directional antenna for the outside antenna improves coverage area.

How the unit functions:

The 800MHz and 1900MHz cellular signal from the cell site is received by the Outside antenna. The signal is then amplified and transmitted to your phone through the inside antenna. When the phone transmits, the signal is sent to the amplifier through the inside antenna and then amplified and sent to the cell site through the outside antenna.

Compatible with:

All US Cellular/PCS carriers except iDEN carriers such as Nextel, SouthernLinc, Mike (Canada). Not compatible with 1700MHz AWS (T-Mobile US 3G). Compatible carriers include: Verizon, AT&T GSM/GPRS/TDMA, Cingular, Alltel, Sprint PCS, T-Mobile (850MHz, 1900MHz), Cellular One, US Cellular, Midwest Wireless, Qwest, etc.

Installation:

In order for your system to function properly, you must maintain adequate separation between the interior and exterior antennas. This amplifier requires a minimum of 20' of vertical separation between the outside and inside antennas. If a directional antenna is used for either the inside or outside antenna, ensure that it is not pointed at the other antenna.
