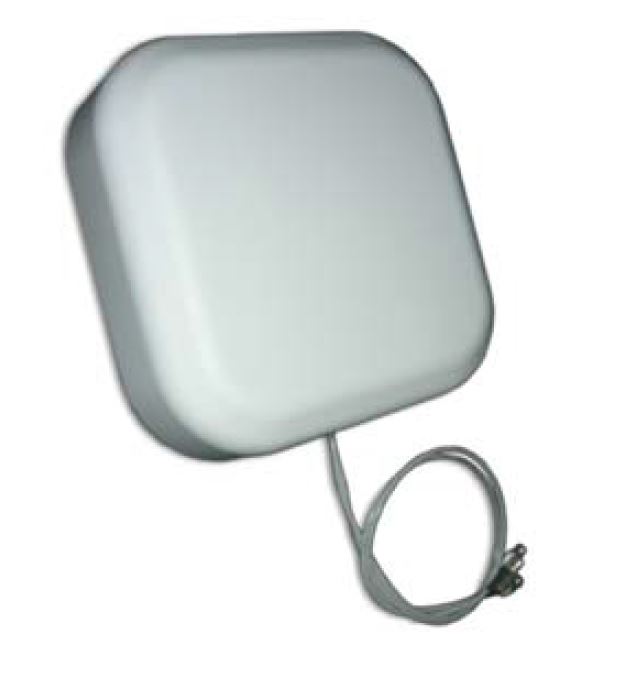

PAV69278I-30NF - LTE Vertical Standard Directional Panel Antenna
The PAV692781 is a multiband, high gain directional panel antenna with vertical polarizationthat covers the 698 960 MHz/1710 2700 MHz LTE700/Cellular/PCS/AWS/ MDS and globalGSM900/ GSM1800 /UMTS/LTE2600 bands
|
No longer available
UPC : PAV69278I-30NF
Manufacturer: TE Connectivity (Laird)
Manufacturer Part No: PAV69278I-30NF
|
The PAV692781 is a multiband, high gain directional panel antenna with vertical polarization
that covers the 698 – 960 MHz/1710 – 2700 MHz LTE700/Cellular/PCS/AWS/ MDS and global
GSM900/ GSM1800 /UMTS/LTE2600 bands. The radiation patterns are uniform and
symmetrical, providing high level signal density into defined coverage zones. This antenna will
greatly enhance the performance of LTE systems and is ideal for indoor applications. The
antenna includes a wall mounting bracket, anchors and bolts.
FEATURES
- Performance optimized using Laird proprietary RF optimization tools
- Mounts easily and directly to wall
- UV stable, aesthetically compact Radome with excellent flame rating
- Plenumrated flame resistant cable
- Engineered for superior performance: high dBi gain & excellent VSWR
- Conformance to RoHS
APPLICATIONS
- Inbuilding Wireless Networks
- Wireless Terminal, PointofSale, and MachinetoMachine
- Automatic meter reading
- Commercial, industrial and home security
|
Finished cable with N Male ends.
