MMO24580608NF - PCTEL Maxrad 2.4--2.48 & 5.15-5.85 GHz Dual Band Omni Antenna
Durable fiberglass 3.85/5.85 dBi omni-directional 2.4-2.48/5.15-5.85 GHz antenna. Multiple band coverage eliminates the need for a second or third antenna in POP locations where mounting space is limited or costly.
|
Your Price: **DISCONTINUED**
UPC : MMO24580608NF
Manufacturer: PCTEL, MaxRad
Manufacturer Part No: MMO24580608NF
|

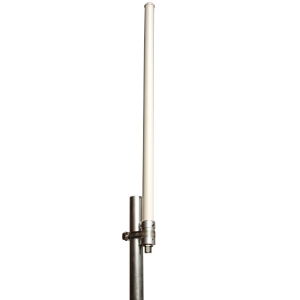

The PCTEL Maxrad Fiberglass Mast Mount Omnidirectional (MMO)Antennas are designed to provide maximum performance and reliability under the toughest weather conditions. The MMO series base antenna provides outstanding coverage in a rugged U.V. stable, plastic radome with an aluminum base that is ideal for indoor or outdoor applications.
Features:
- Elevation radiation pattern shaped to direct energy where it is needed, while suppressing the misdirected upper and lower sidelobe energy.
- Pipe mount is included for added convenience.
- Thread relief on connector. Improved accessibility for taping reduces installation time and improves overall effectiveness
- Multiple band coverage supports 2.4 GHz and 5.15-5.8 GHz broadband networks, eliminating the need for a second or third antenna in POP locations where mounting space is limited or costly. (MMO24580608 model).
Requires:
- Cable: This antenna includes no cable.
|
Electric Specifications
|
| Frequency Range |
2.4-2.48/5.15-5.85 GHz |
| Gain |
6/8dBi |
| Maximum Input Power |
25 Watts |
| Bandwidth |
200 MHz |
| Horizontal Beam Width |
360 deg |
| Vertical Beam Width |
13 deg |
| VSWR |
2.0:1 |
| Polarization |
Vertical |
|
Mechanical Specifications
|
| Antenna Connector |
N-female |
| Dimensions of Antenna |
26" long
.63" radome |
| Weight |
.50 lbs |
|
