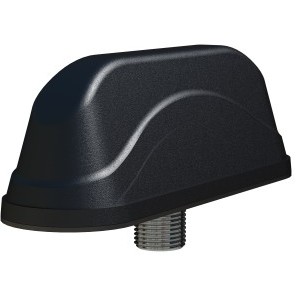

LPAM-7-27-S24-58 - Panorama Multifunction MiMo Cellular and SiSo WiFi Antenna
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications
|
UPC : LPAM-7-27-S24-58
Manufacturer: Panorama Antennas
Manufacturer Part No: LPAM-7-27-S24-58
* Whole number only
|
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications Features: - Low profile antenna
- MiMo 5G/4G/3G/2G Cellular and SiSo 2.4/5.0GHz
- Optional GPS/GNSS
- Tamper-proof housing
The LPAM consists of 2x2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, SiSo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface. Specifications | | Part Number | LPAM-7-27-S24-58 | Electric Specifications | | LTE Frequencies | 698-960MHz
1710-2700MHz
2500-3800MHz | | Global Positioning | GPS / GNSS 1562-1612 | | WiFi Frequencies | 2.4/5.0GHz - (Optional) | | Peak Gain | 5dBi | | LTE MiMo | 2x2 | | Max Input Power (W) | 25 | | Pattern | Omni-directional | | Ground Plane Independent | Yes | Global Positioning Data | | LNA Gain (dB) | 26 | Mechanical Specifications | | Length (mm) | 150 | | Width (mm) | 44 | | Height (mm) | 50 | Mounting Data | | Mounting Type | Panel Mount | | Mounting Method | 18mm (3/4") Mounting Bush | Cable Data | | Type | 3 x CS29 Coax | | Thickness | 0.2" | | Length | 3m | | Termination | 2G/3G/4G/5G - 2 x SMA/Male
WiFi - 1 x RP SMA/Male |
|
