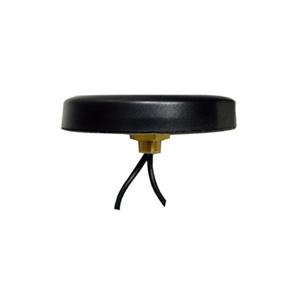

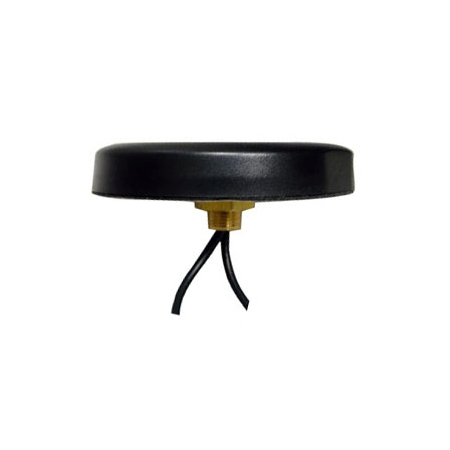

GPSGSMSMMSMA - PCTEL - GPS/Cell/PCS Antenna, hole mount, SMA/SMA
The PCTEL GPS/GSM multi-band GPS magnetic mount antenna provides omnidirectional coverage of GSM frequencies from 824-896 MHz and 1710-1990MHz plus GPS L1 vehicle tracking support.
|
IN STOCK
UPC : GPSGSMSMMSMA
Manufacturer: PCTEL, MaxRad
Manufacturer Part No: GPSGSMSMMSMA
* Whole number only
|
The PCTEL GPS/GSM multi-band GPS magnetic mount antenna provides omnidirectional coverage of GSM frequencies from 824-896 MHz and 1710-1990MHz plus GPS L1 vehicle tracking support. Specifications | | Part Number | GPSGSMSMMSMA | | Frequency Range | 824-896 MHz / 1710-1990 MHz | | Gain | 2 dBi / 1 dBi | | Voltage | 3-13.5 | Maximum Power
(Watts) | 50 | | Size | 5.2" OD x 2.8" H | | Whip Material | Molded Radome | | Color | Black | | Mount Type | Surface Mount | | Cable Type | RG-174 | | Cable Length | 17' | | Connector | SMA Male | Mfg
Warranty | 2 years |
|
GPSGSMSMMSMA - PCTEL - GPS/Cell/PCS Antenna, hole mount, SMA/SMA
|
|
